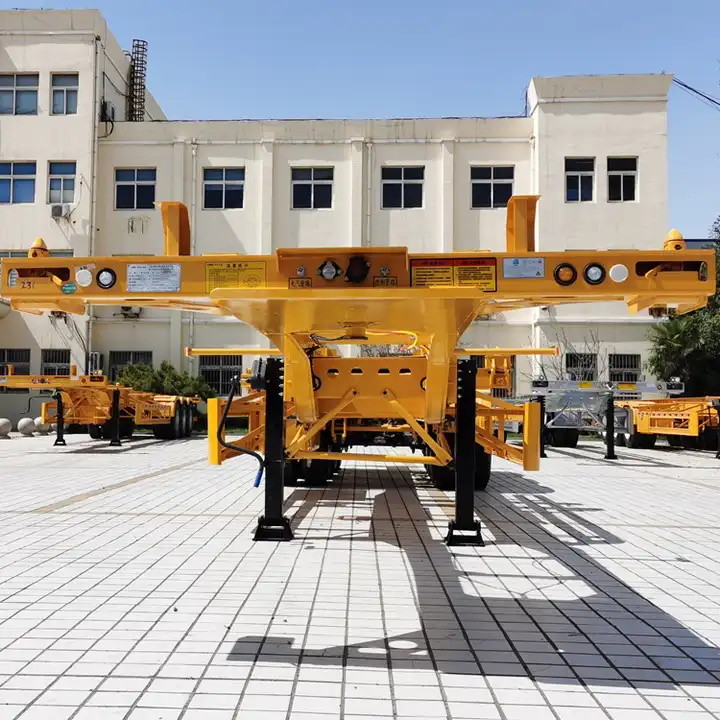

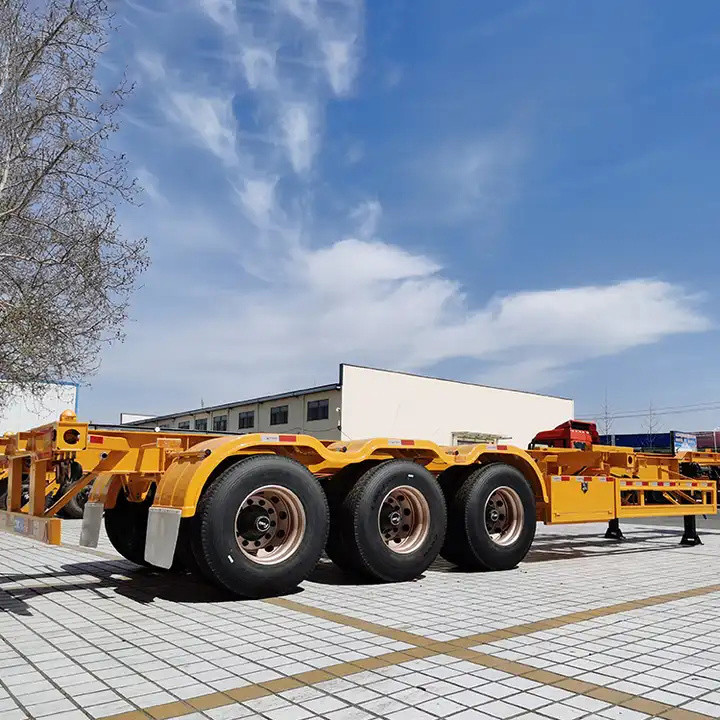

This 3-axle 40-foot skeleton container chassis semi-trailer is a
stable and efficient special vehicle. Adopting skeleton design, it
has strong carrying capacity and stability, adapting to various
road conditions and cargo requirements. It can accommodate common
20 feet and 40 feet containers, equipped with adjustable legs and
necessary safety equipment to ensure safe transportation. It is an
ideal choice for the logistics industry.
Type | Semi-Trailer |
Max Payload | 40000kg |
Brand | Five Continents |
Place of Origin | Shandong,China |
Use | Truck Trailer |
Material | Steel |
Product name | Container Trailer 3 Axles |
Size | 12500*2438*1450 |
Tire | 12R22.5(specificationcan be Optional) |
Rim | 8.00-20 /8.5-20/8.8-20/8.5-22.5/9.0-22.5 |
Suspension | Mechanical/Air Suspension |
Axle | 3 Axles*13Ton FUWA/BPW Brand |
Landing Gear | JOST Brand Two-speed |
King pin | 2"(50mm)or3.5"(90mm) JOST |
Brake System | WABCO Valve |
Color | Customers Optional |
Main beam | Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle
plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm;Material is Q345 Carbon Steel. |
Side beam | 16mm-25mm channel steel (Material is Q235B carbon steel) |
Cross beam | 80*40mm square tube(Material is Q235B carbon steel) |
Twist lock | 12sets Enhanced international universal twist locks |
Brake chamber | 4 units T30/30 spring brake chambers,2 units T30 brake chambers |
Emergency valve | WABCO/Fitness brand |
Light | Tail lamp with turn signal, brake light & reflector, side lamp etc |
Tool box | 1set standard tool box( waterproof type) |
Spare wheel carrier | 1 pieces( Patent type) |
Accessory | A set of tools,An instruction manual |
ABS system | optional |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of
anticorrosive prime, 2 coats of final paint |





PACKING AND SHIPPING
We find the best shipping solution according to the actual order
size to reduce the transportation cost and save the transportation
cost for customers Common shipping: bulk carrier, ro-ro
ship,container ship, frame ship
(1) Waxing: carry out wax spraying treatment
(2) Packing: stabilized and fixed with steel wire to protect the
trailer during transportation.
(3) Transportation: Reliable logistics services from well-known
freight forwarding providers to make the transportation process
safe and timely.
(4) In 80% of the cases, we can provide customers with 15-20 days
delivery for regular trailers.
(5) We can ship all trucks and trailers and spare parts by all
means of transportation.
(6) For 90% of our cargoes, we will ship by sea, by container or
roll-on/roll-off/bulk/flatbed to all major continents, such as
South America, the Middle East, Africa, Oceania, etc. We can also
ship by road or by road to the neighboring countries of China, such
as Russia, Tajikistan, Kazakhstan and Mongolia.
(7) For China's neighboring countries, such as Russia, Tajikistan,
Kazakhstan, Mongolia, etc., we can ship by road or railroad
transportation trucks.
(8) For light spare parts for urgent needs, we can ship them by
international courier services, such as DHL, TNT, UPS or Fedex.
