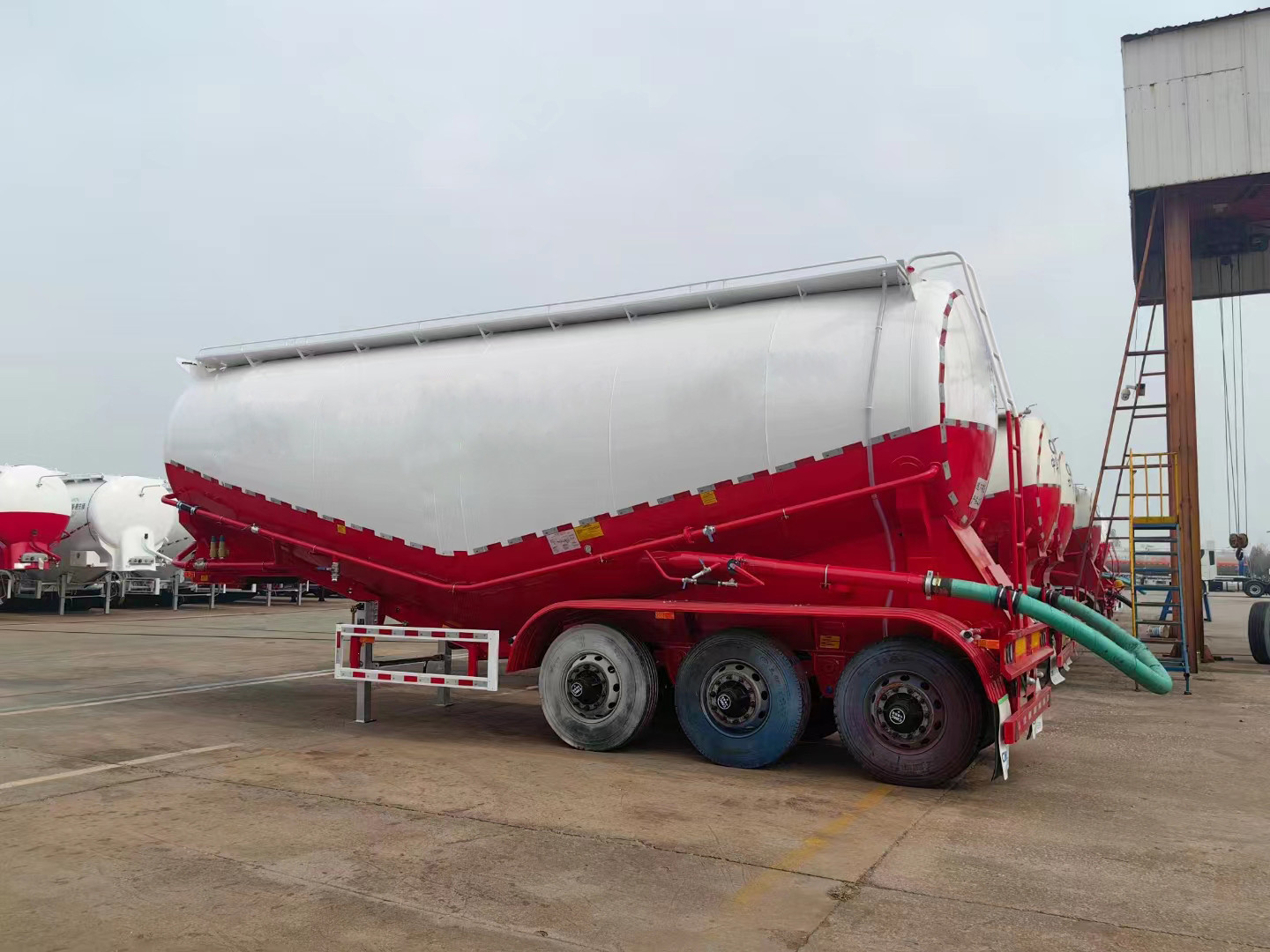

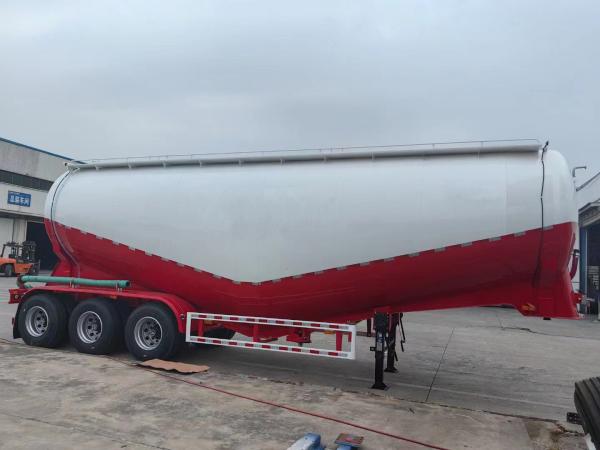

40 cubic metre bulk cement Fly ash tanker trailer
The tank is professionally designed to ensure the sealing and safety to prevent the leakage of cement or fly ash. The tank made of high quality steel has corrosion and abrasion resistance, adapting to harsh environment and long time use. This trailer is widely used in construction, engineering, logistics and other industries. It can be used to transport cement, fly ash and other bulk building materials to meet the needs of different construction sites and projects.
| Type | Semi-Trailer |
| Max Payload | 45CBM |
| Place of Origin | Shandong, China |
| Use | Truck Trailer |
| Material | Steel |
| Size | 13000*2500*4200mm |
| Product name | Bulk Tank Trailer |
| Tire | 12R22.5,12 pieces |
| Spare Tire Carriers | 2 pieces |
| Axle | 3 axles 13 Ton Fuwa Brand |
| Suspension | common mechanical |
| Landing gear | 28T,Manual operating, Heavy duty landing gear(Brand optional) |
| King pin | 2" or 3.5" traction pin |
| Color | customer demend |
| Tank material | St-37/4mm steel&6mm steel sheet Shape:V type |
| Function | Transport Bulk Cement Powder |
| Loading capacity | 40CBM |
| Wheel Rim | 9.0-22.5 |
| Wheelbase | 7180+1310+1310mm |
| Steel Spring | 10 pieces per axle |
| Engine | Diesel engine:weichai, brand model:4102.44 KW |
| Discharge valve & pipe | 4” disc valve&4” seamless steel tube |
| Air-charging system | 2” main hole. 2” check valve.1.5” safe valve.0.4Mpa.gauge |
| Quadratic blow | 1” diameter check valve |
| Discharge cover | 2-4 sets of 100mm discharge valves |
| Manhole cover | 500mm manhole cover 2 sets with 2 breather valve |
| Accessories | 1 Set standard tool box |
| Light | Tail lamp with turn signal, brake light & reflector,side lamp etc |
| Painting | 1coat of anti corrosive primer, twice coats of final paint |
| compressor | BOHAI brand 14M3 |
| Main beam | The height of the beam is 500mm;Down plate is 16mm;Middle plate is 8mm. |
| Tank body | 5mm steel plate, head and back head made of 6mm steel plate the shape can be column or TV square shape |
| Brake Chamber | Six big chamber( Brand Optional ) |
| Brake system | Dual Line Brake system (ABS ) |
PACKING AND SHIPPING
We find the best shipping solution according to the actual order size to reduce the transportation cost and save the transportation cost for customers Common shipping: bulk carrier, ro-ro ship,container ship, frame ship
(1) Waxing: carry out wax spraying treatment
(2) Packing: stabilized and fixed with steel wire to protect the trailer during transportation.
(3) Transportation: Reliable logistics services from well-known freight forwarding providers to make the transportation process safe and timely.
(4) In 80% of the cases, we can provide customers with 15-20 days delivery for regular trailers.
(5) We can ship all trucks and trailers and spare parts by all means of transportation.
(6) For 90% of our cargoes, we will ship by sea, by container or roll-on/roll-off/bulk/flatbed to all major continents, such as South America, the Middle East, Africa, Oceania, etc. We can also ship by road or by road to the neighboring countries of China, such as Russia, Tajikistan, Kazakhstan and Mongolia.
(7) For China's neighboring countries, such as Russia, Tajikistan, Kazakhstan, Mongolia, etc., we can ship by road or railroad transportation trucks.
(8) For light spare parts for urgent needs, we can ship them by international courier services, such as DHL, TNT, UPS or Fedex.
|
|
