Brand Name : | Foton Ouman |
Price : | $48000 |
Supply Ability : | 500 units per month |
Delivery Time : | 15 working days |

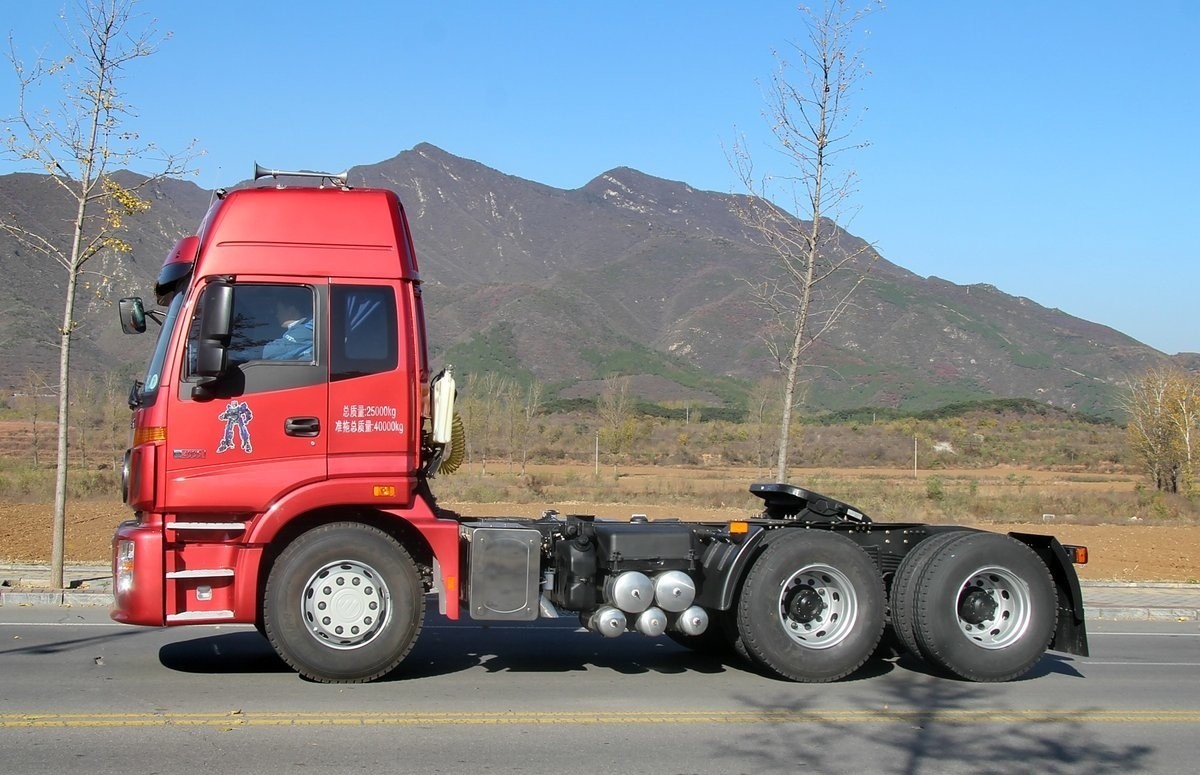

Foton Ouman ETX 9 Series Heavy Truck 400 HP 6X4 Tractor
The Foton Ouman ETX 9 Series Heavy Duty Truck is a high-performance 6X4 tractor with a powerful 400 hp engine. Designed for heavy-duty hauling tasks, this model is suitable for long-distance transportation and heavy-duty work. It adopts 6X4 drive mode to provide excellent traction and stability performance. The Foton Ouman ETX 9-series heavy-duty truck offers excellent reliability and durability, and is able to cope with a variety of harsh road conditions and working environments. The vehicle adopts advanced technology and craftsmanship, combined with sophisticated design, to ensure excellent maneuverability and driving comfort. It is equipped with a spacious and comfortable cab and humanized interior configurations, providing a comfortable working environment and a good driving experience. The Foton Ouman ETX 9 Series Heavy Duty Truck is equipped with high load carrying capacity and traction power, capable of performing various heavy-duty hauling tasks, such as heavy cargo transportation and trailer transportation. It is a reliable, powerful and durable tractor that provides users with excellent transportation solutions.
Basic Information | |
Driving form | 6X4 |
Wheelbase: | 3300+1350mm |
Engine | Foton Cummins ISGe4400 |
Transmission | Faster 12JS180TA |
Rear axle speed ratio | 3.7 |
Length | 7 m |
Width | 2.495 m |
Height | 3.41 m |
Front wheelbase | 2005mm |
Rear Wheelbase | 1800/18001820/1820mm |
Overall weight | 8.805 tons |
Gross mass | 25 tons |
Gross Tractor Mass | 40 tons |
Maximum speed | 105km/h |
Segment: | Standard |
Origin | Beijing |
Tonnage Class | Heavy Truck |
Engine parameters | |
Engine Model | Foton Cummins ISGe4 400 |
Engine Brand | Foton Cummins |
Number of cylinders | 6 |
Fuel Type | Diesel |
Cylinder arrangement | Inline |
Displacement | 11.8L |
Emission Standard | National IV |
Maximum Horsepower | 400hp |
Maximum Output Power | 294kW |
Maximum torque | 2100N-m |
Maximum torque speed | 1000rpm |
Rated Speed | 1900rpm |
Technology: | Common Rail SCR |
Cab parameters | |
Cab | High roof |
Number of passengers | 3 |
Seat row | half row |
Transmission parameters | |
Transmission Model | Faster 12JS180TA |
Transmission Brand | Faster |
Shift mode | Manual |
Forward Gear | 12 |
Reverse gears | 2 |
Tank Material | Aluminum Alloy |
Chassis Parameters | |
Frame Size | 286mm |
Rear Axle Description | 469 rear axle |
Allowable front axle load | 7000kg |
Allowable load on rear axle | 18000kg (with twin axles) |
Speed ratio | 3.7 |
Suspension | Steel plate spring |
Number of Springs | Leaf springs |
Tires | |
Number of tires | 10 |
Tire Size | 12R22.5 |
Handling Configurations | |
ABS Anti-Locking | -ABS |
Note: The models that do not comply with the regulations of the People's Republic of China, such as National III/National IV/National V models, can no longer be licensed domestically, and are only for export, or domestic off-highway internal transit and other unlicensed areas. This parameter is for reference only, the actual model configuration in the store shall prevail. |
PACKING AND SHIPPING
We find the best shipping solution according to the actual order
size to reduce the transportation cost and save the transportation
cost for customers Common shipping: bulk carrier, ro-ro
ship,container ship, frame ship
(1) Waxing: carry out wax spraying treatment
(2) Packing: stabilized and fixed with steel wire to protect the
trailer during transportation.
(3) Transportation: Reliable logistics services from well-known
freight forwarding providers to make the transportation process
safe and timely.
(4) In 80% of the cases, we can provide customers with 15-20 days
delivery for regular trailers.
(5) We can ship all trucks and trailers and spare parts by all
means of transportation.
(6) For 90% of our cargoes, we will ship by sea, by container or
roll-on/roll-off/bulk/flatbed to all major continents, such as
South America, the Middle East, Africa, Oceania, etc. We can also
ship by road or by road to the neighboring countries of China, such
as Russia, Tajikistan, Kazakhstan and Mongolia.
(7) For China's neighboring countries, such as Russia, Tajikistan,
Kazakhstan, Mongolia, etc., we can ship by road or railroad
transportation trucks.
(8) For light spare parts for urgent needs, we can ship them by
international courier services, such as DHL, TNT, UPS or Fedex.
![]() |
