    Side Wall Semi Trailer truck With Twist Locks 3 Axles Stake Cargo Trailer

    Ask Lasest Price
    Brand Name : Five Continents
    Price : $9500
    Supply Ability : 500 unit/units per month
    Delivery Time : 15working days
    • Product Details
    • Company Profile

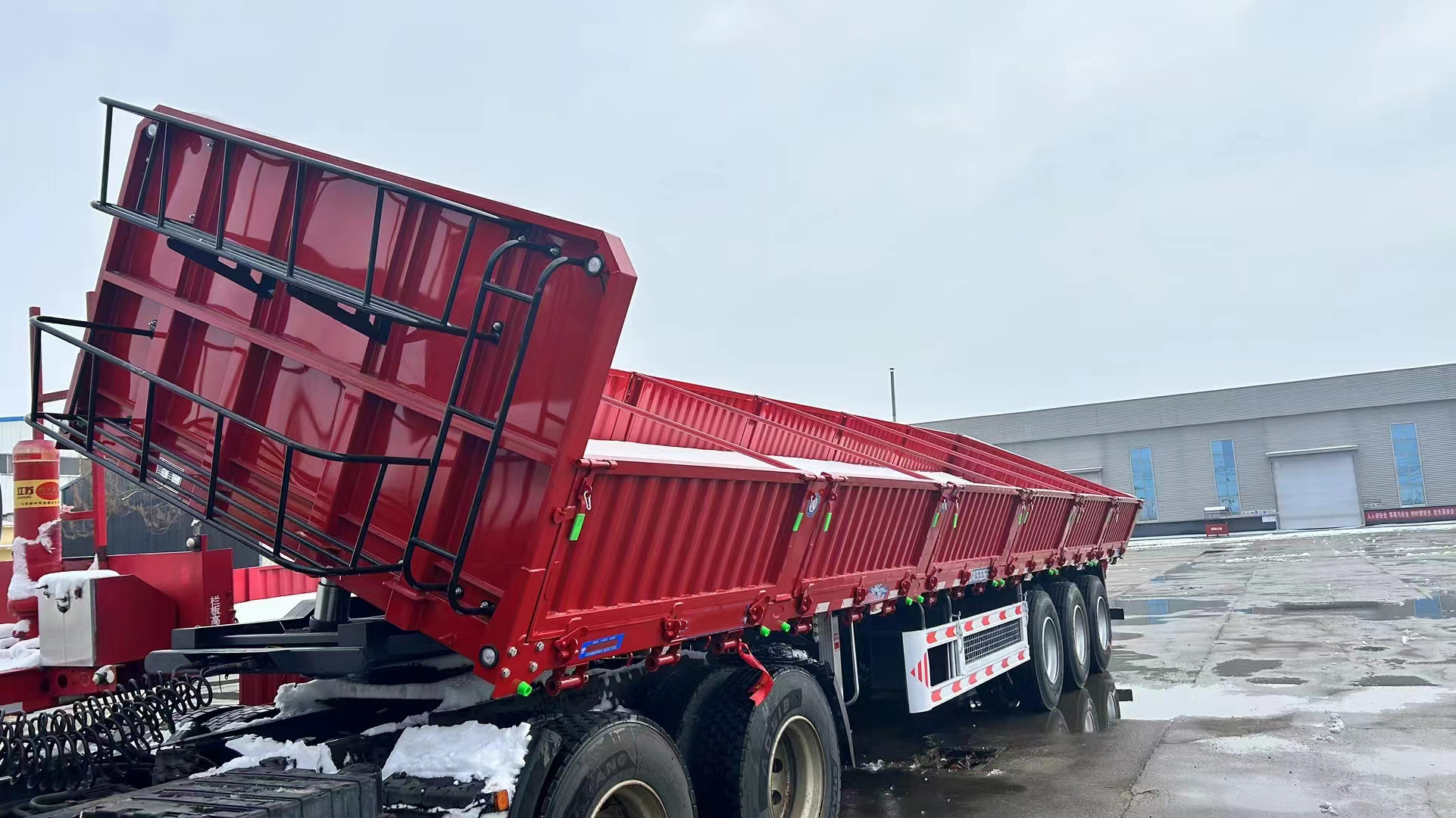

    Side Wall Semi Trailer truck With Twist Locks 3 Axles Stake Cargo Trailer

    3 axles side wall semi trailer with twist locks

    The 13m 3-axle rollover semi-trailer is a reliable and efficient transportation tool designed for long size cargo transportation. It is equipped with side-rolling design, large loading capacity and safety facilities, which can meet customers' needs for safe and efficient transportation and ensure smooth delivery of goods during transportation. The trailer adopts side tipping design, which is convenient for cargo loading and unloading operation. The side-turning mechanism can turn the cargo to one side, so that the cargo can enter and exit from the side, which improves the loading and unloading efficiency and convenience. The semi-trailer is equipped with necessary safety facilities, such as side-roll locking mechanism, anti-skid surfaces and safety fixtures, to ensure the safety of the cargo during transportation. These facilities help prevent accidental movement or tilting of the cargo.

    TypeSemi-Trailer
    UseTruck Trailer
    Place of OriginShandong, China
    MaterialSteel/High tensile steel
    Size13000*2500*3000
    Product namesidewall semi trailer
    ColorCustomers Optional
    Tool boxone or more
    Plate form3-6mm
    Leaf spring8 or 10pieces
    RimZhengxing brand
    Tire/vacuum tireTriangle brand
    AxleFUWA or BPW brand
    MaterialSteel/High tensile steel
    typeany type can be design
    tyre11.00-20
    Gross WeightAbout 7.5 tons
    Outer side dimension(mm)13000 × 2500 × 2850
    Loading Capacity(Tons)≤ 50T
    Axles13 T /PER, 3axles FUWA Brand,
    Tire12.00R22.5, 13pieces Triangle or double coin brand
    Rim9.00-22.5, 13pieces China Brand
    SuspensionMechanical suspension (America Type)
    Spring leaf90(W)mm*13(Thickness)mm *10pices, heavy duty type
    King pinJOST brand 2.0 or 3.5 inch bolts type
    Suspension28T or JOST brand E100
    Main BeamHeight: 500mm, upper plate is 14mm, middle plate is 8mm,
    down plate is 16mm ; Material is Q345B Steel .
    Plateform3mm diamond plate steel
    Side beam16# channel steel
    Brake chamberWABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; One piece of 45L air tank
    Fuel tank1000L
    HooksWith
    Twist Locks12 pieces (Lifting type)
    ValveWABCO valve
    ABSWithout
    LightLED light
    Voltage24V
    Receptacle7 ways (7 wire harness)
    Tool boxOne piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
    PaintingComplete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
    Shipping TermsTransport by RORO or 45FT container.

    Side Wall Semi Trailer truck With Twist Locks 3 Axles Stake Cargo Trailer

    Side Wall Semi Trailer truck With Twist Locks 3 Axles Stake Cargo Trailer

    Side Wall Semi Trailer truck With Twist Locks 3 Axles Stake Cargo Trailer

    Side Wall Semi Trailer truck With Twist Locks 3 Axles Stake Cargo Trailer

    Side Wall Semi Trailer truck With Twist Locks 3 Axles Stake Cargo Trailer

    Side Wall Semi Trailer truck With Twist Locks 3 Axles Stake Cargo Trailer

    PACKING AND SHIPPING

    We find the best shipping solution according to the actual order size to reduce the transportation cost and save the transportation cost for customers Common shipping: bulk carrier, ro-ro ship,container ship, frame ship
    (1) Waxing: carry out wax spraying treatment
    (2) Packing: stabilized and fixed with steel wire to protect the trailer during transportation.
    (3) Transportation: Reliable logistics services from well-known freight forwarding providers to make the transportation process safe and timely.
    (4) In 80% of the cases, we can provide customers with 15-20 days delivery for regular trailers.
    (5) We can ship all trucks and trailers and spare parts by all means of transportation.
    (6) For 90% of our cargoes, we will ship by sea, by container or roll-on/roll-off/bulk/flatbed to all major continents, such as South America, the Middle East, Africa, Oceania, etc. We can also ship by road or by road to the neighboring countries of China, such as Russia, Tajikistan, Kazakhstan and Mongolia.
    (7 )For China's neighboring countries, such as Russia, Tajikistan, Kazakhstan, Mongolia, etc., we can ship by road or railroad transportation trucks.
    (8) For light spare parts for urgent needs, we can ship them by international courier services, such as DHL, TNT, UPS or Fedex.
