    4 Axle Lowbed Semi Trailer Truck 120ton Super-Wide Gooseneck Trailer

    Ask Lasest Price
    Brand Name : Five Continents
    Price : $13500
    Supply Ability : 500 units per month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

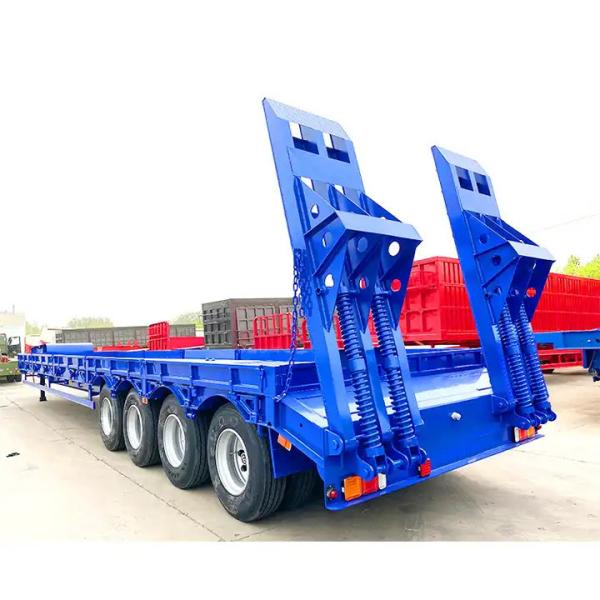

    4 Axle Lowbed Semi Trailer Truck 120ton Super-Wide Gooseneck Trailer

    4 axle 120ton super-wide lowbed truck trailer gooseneck trailer

    The truck trailer has an excellent load carrying capacity of 120 tons designed to transport overweight cargo safely and reliably. The vehicle is constructed with high-strength materials and a sturdy structure to ensure adequate load-carrying capacity and structural stability. It adopts an extra-wide design to accommodate cargoes with larger widths. The extra-wide design provides more spacious cargo space, making it easier to load and unload cargo, and can accommodate cargo with widths that exceed conventional dimensions. To improve vehicle stability and maneuverability, the truck trailer features a multi-axle design. The multi-axle layout helps to spread the weight of the cargo, reduce tilting and stress on the vehicle during driving, and improve driving safety.

    TypeSemi-Trailer
    Max Payload

    150Ton

    Place of Origin

    Shandong, China

    UseTruck Trailer
    Material

    Steel

    Size17000x3000x1700MM
    Product namegooseneck trailer
    Axle4 axles
    SuspensionMechanical suspension
    Landing GearStandard 28Ton
    King PinJOST 2" or 3.5" traction pin
    Tire12R22.5/12.00R20/11R22.5
    FunctionTransport Heavy Duty Equipment
    ColorCustomers Optional
    Leaf Spring90(W)mm*13(Thickness)mm*10(Layer)
    LadderHydraulic/Mechanical ladder
    Support legsJOST, FUWA or YAHUA brand 28T
    Wheelbase1310
    Steel SpringHeavy Duty Leaf Spring
    Electrical system24V, 7 pin socket, One set 7-core standard Cable
    The material of Main beamUpper plate thickness is 20mm, middle plate thickness is 20mm, down plate thickness is 12mm;Material is Q345 Carbon Steel.
    Side beam16mm-25mm channel steel (Material is Q235 carbon steel)
    Platform plate5 mm Diamond Plate
    Brake Chamber

    WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; One piece of 45L air tanks

    ABS systemoptional
    LightTail lamp with turn signal, brake light & reflector, side lamp etc
    Tool box1 sets(waterproof type)
    Spare tire carrier1 sets(Patent type)
    PaintingComplete Chassis sand blasting to clean rust, 2 coat of anticorrosive primer, 2 coats of final paint
    PackingPolish with wax before shipping

    4 Axle Lowbed Semi Trailer Truck 120ton Super-Wide Gooseneck Trailer

    4 Axle Lowbed Semi Trailer Truck 120ton Super-Wide Gooseneck Trailer

    4 Axle Lowbed Semi Trailer Truck 120ton Super-Wide Gooseneck Trailer

    4 Axle Lowbed Semi Trailer Truck 120ton Super-Wide Gooseneck Trailer

    4 Axle Lowbed Semi Trailer Truck 120ton Super-Wide Gooseneck Trailer

    4 Axle Lowbed Semi Trailer Truck 120ton Super-Wide Gooseneck Trailer

    PACKING AND SHIPPING

    We find the best shipping solution according to the actual order size to reduce the transportation cost and save the transportation cost for customers Common shipping: bulk carrier, ro-ro ship,container ship, frame ship
    (1) Waxing: carry out wax spraying treatment
    (2) Packing: stabilized and fixed with steel wire to protect the trailer during transportation.
    (3) Transportation: Reliable logistics services from well-known freight forwarding providers to make the transportation process safe and timely.
    (4) In 80% of the cases, we can provide customers with 15-20 days delivery for regular trailers.
    (5) We can ship all trucks and trailers and spare parts by all means of transportation.
    (6) For 90% of our cargoes, we will ship by sea, by container or roll-on/roll-off/bulk/flatbed to all major continents, such as South America, the Middle East, Africa, Oceania, etc. We can also ship by road or by road to the neighboring countries of China, such as Russia, Tajikistan, Kazakhstan and Mongolia.
    (7) For China's neighboring countries, such as Russia, Tajikistan, Kazakhstan, Mongolia, etc., we can ship by road or railroad transportation trucks.
    (8) For light spare parts for urgent needs, we can ship them by international courier services, such as DHL, TNT, UPS or Fedex.
