    13meter 42 Ft 3 Axle Cargo Trailer Axle Triple

    Ask Lasest Price
    Brand Name : Five Continents
    Model Number : SKW9406/SKW9407/SKW9404/SKW9405/SKW9402
    Supply Ability : 500 unit/units per month
    Delivery Time : 15working days
    Price : $8500
    • Product Details
    • Company Profile

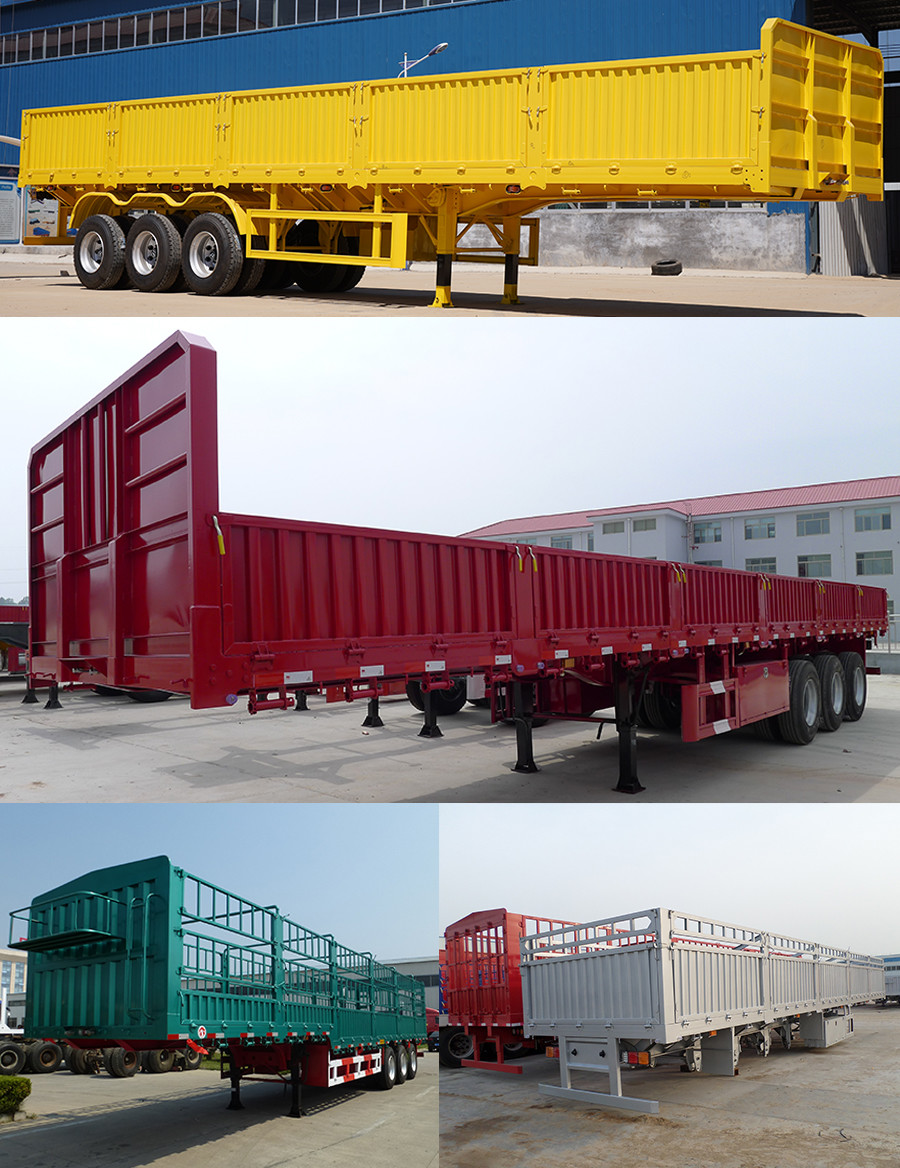

    13meter 42 Ft 3 Axle Cargo Trailer Axle Triple

    3axle, 13meter cargo trailer

    Our semi-trailers are designed with precision and durability to meet the needs of a wide range of industries. It features rugged construction and advanced engineering to ensure safe and reliable transportation of cargo. Spacious interiors and customizable configurations accommodate a wide range of cargo types and sizes. Equipped with state-of-the-art braking and suspension systems, our semi-trailers ensure smooth maneuverability even on challenging terrain. Their aerodynamic design improves fuel efficiency and reduces operating costs. Experience the quality and performance of our semi-trailers, which are designed to optimize logistics operations and deliver goods with precision and reliability. Trust our industry-leading solutions for seamless cargo transportation.

    Model Number

    SKW9406/SKW9407/SKW9404/SKW9405/SKW9402

    Product typecargo semi trailer
    Outside dimension

    Length:8500mm-13000mm,Width:2500mm,height:600mm

    Tare weight6.5-7.2T
    Wheelbase6560mm+1310mm+1310mm
    Loading capacity30T-60T
    Axle
    13T/16T.FUWA/BPW Brand
    ABS system
    Optional
    Front/rear-/2420
    Suspension Mechanical

    suspension(Germany Type or America Type)or Air

    suspension(China brand or BPW brand)

    Spring leaf
    90(W)mm*13(Thickness)mm*10Layer,optional
    Tires

    12.00R22.5/315 80R22.5/11.00R20/12.0020 Brand can be

    Optional

    Rim

    9.00-22.5/8.00-20/8.5-20 China BrandKing pin JOST 2.00 or 3.5

    inch

    Support legs
    JOST brand
    The material of main beam

    The height of the beam is500mm,upper plate is 14mm down

    plate is 16mm middle plate is 8 mm

    Material
    Q345B steel/T300 high strength steel
    Floor plate
    3mm or can be optional
    Side beam
    16mm or 18mm channel steel(Material is Q235steel)
    Side wall
    600-1500mm height,or can be do box type ,for choose
    Brake Chamber
    WABCO RE 6
    relay valve
    T30/30+T30
    Spring brake chamber(TKL brand)
    Two pieces of 45L air tanks Or China brand
    Electrical System
    24V,7 wire harness
    Tool box
    One piece or according to the requirement of the buyer
    Painting

    Compete Chassis sand blasting to clean rust,1 coat of

    anticorrosive prime,2 coats of final paint

    Chassis name
    Cargo truck chassis

    13meter 42 Ft 3 Axle Cargo Trailer Axle Triple

    13meter 42 Ft 3 Axle Cargo Trailer Axle Triple


    PACKING AND SHIPPING

    We find the best shipping solution according to the actual order size to reduce the transportation cost and save the transportation cost for customers Common shipping: bulk carrier, ro-ro ship,container ship, frame ship
    (1) Waxing: carry out wax spraying treatment
    (2) Packing: stabilized and fixed with steel wire to protect the trailer during transportation.
    (3) Transportation: Reliable logistics services from well-known freight forwarding providers to make the transportation process safe and timely.
    (4) In 80% of the cases, we can provide customers with 15-20 days delivery for regular trailers.
    (5) We can ship all trucks and trailers and spare parts by all means of transportation.
    (6) For 90% of our cargoes, we will ship by sea, by container or roll-on/roll-off/bulk/flatbed to all major continents, such as South America, the Middle East, Africa, Oceania, etc. We can also ship by road or by road to the neighboring countries of China, such as Russia, Tajikistan, Kazakhstan and Mongolia.
    (7 )For China's neighboring countries, such as Russia, Tajikistan, Kazakhstan, Mongolia, etc., we can ship by road or railroad transportation trucks.
    (8) For light spare parts for urgent needs, we can ship them by international courier services, such as DHL, TNT, UPS or Fedex.
